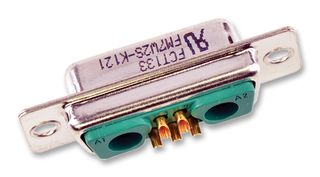

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MOLEX / FCT |
|---|---|
| Manufacturer Part No | 172704-0036Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2433188 |
| Product Range | 172704 Series |
| Also Known As | 1727040036, FM7W2SA-K121, 172704-0036 |
| Your Part Number | |
| Technical Datasheet |
84 total stock globally
Need more?
84 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $12.250 ($14.0875) |
| 10+ | $10.420 ($11.983) |
| 100+ | $8.850 ($10.1775) |
| 250+ | $8.190 ($9.4185) |
| 500+ | $7.890 ($9.0735) |
| 1000+ | $7.530 ($8.6595) |
Price for:Each
Minimum: 1
Multiple: 1
$12.25 ($14.09 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MOLEX / FCT |
|---|---|
| Manufacturer Part No | 172704-0036Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2433188 |
| Product Range | 172704 Series |
| Also Known As | 1727040036, FM7W2SA-K121, 172704-0036 |
| Technical Datasheet | |
| Product Range | 172704 Series |
| Insert Arrangement | DA-7W2 |
| Gender | Receptacle(View Associated Connectors) |
| No. of Contacts | 7Contacts |
| Contact Type | 5 Signal, 2 Power |
| Contact Termination Type | Solder Cup |
| Connector Mounting | Cable Mount, Panel Mount |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (27-Jun-2024) |
Product Overview
The FM7W2SA-K121 is a 7-way D-sub mixed layout connector, shell made of steel with tin-plated finish. The FM series DA-7W2 receptacle has through hole termination, brass signal contact and PBT insulator.
- Green insulator
- Temperature range (insulator) from -55 to 130°C
Technical Specifications
| Product Range | 172704 Series |
|---|---|
| Gender | Receptacle |
| Contact Type | 5 Signal, 2 Power |
| Connector Mounting | Cable Mount, Panel Mount |
| Contact Material | Brass |
| SVHC | Lead (27-Jun-2024) |
| Insert Arrangement | DA-7W2 |
|---|---|
| No. of Contacts | 7Contacts |
| Contact Termination Type | Solder Cup |
| Connector Body Material | Steel Body |
| Contact Plating | Gold Plated Contacts |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0066 |
