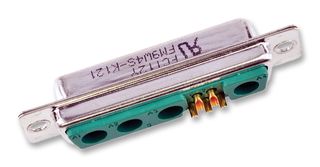

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MOLEX / FCT |
|---|---|
| Manufacturer Part No | 172704-0040Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2433192 |
| Product Range | 172704 Series |
| Also Known As | 1727040040, FM9W4SA-K121, 172704-0040 |
| Your Part Number | |
| Technical Datasheet |
126 total stock globally
Need more?
126 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $13.820 ($15.893) |
| 10+ | $11.760 ($13.524) |
| 100+ | $10.150 ($11.6725) |
| 250+ | $9.520 ($10.948) |
| 500+ | $8.760 ($10.074) |
| 1000+ | $8.270 ($9.5105) |
Price for:Each
Minimum: 1
Multiple: 1
$13.82 ($15.89 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MOLEX / FCT |
|---|---|
| Manufacturer Part No | 172704-0040Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2433192 |
| Product Range | 172704 Series |
| Also Known As | 1727040040, FM9W4SA-K121, 172704-0040 |
| Technical Datasheet | |
| Product Range | 172704 Series |
| Insert Arrangement | DB-9W4 |
| Gender | Receptacle(View Associated Connectors) |
| No. of Contacts | 9Contacts |
| Contact Type | 5 Signal, 4 Power |
| Contact Termination Type | Solder Cup |
| Connector Mounting | Cable Mount, Panel Mount |
| Connector Body Material | Steel Body |
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (07-Nov-2024) |
Product Overview
172704-0040 is a 2.84mm pitch FCT mixed layout female D-sub connector.
- 9 circuits max, 5 signal contacts loaded, 2 rows, shielded
- 7.5A maximum current per contact
- Gold over nickel phosphorus plating, tin-plated shell
- Copper alloy contact
- IP20 rating
- Green insulator
- 20AWG wire size
- Operating temperature range from -55° to +130°C
Technical Specifications
| Product Range | 172704 Series |
|---|---|
| Gender | Receptacle |
| Contact Type | 5 Signal, 4 Power |
| Connector Mounting | Cable Mount, Panel Mount |
| Contact Material | Brass |
| SVHC | Lead (07-Nov-2024) |
| Insert Arrangement | DB-9W4 |
|---|---|
| No. of Contacts | 9Contacts |
| Contact Termination Type | Solder Cup |
| Connector Body Material | Steel Body |
| Contact Plating | Gold Plated Contacts |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0093 |
