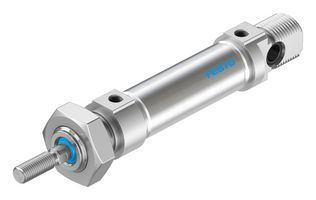

Product Information
| Manufacturer | FESTO |
|---|---|
| Manufacturer Part No | DSNU-16-20-PPS-ACopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3431532 |
| Product Range | DSNU |
| Also Known As | 1908276 |
| Technical Datasheet | |
| Cylinder / Drive Type | Round Cylinder with Piston Rod |
| Mode of Operation | Double Acting |
| Piston Diameter | 16mm |
| Pneumatic Connection | M5 |
| Operating Pressure Max | 10bar |
| Stroke Length | 20mm |
| Standards | DIN ISO 6432 |
| Product Range | DSNU |
| SVHC | No SVHC (25-Jun-2020) |
Product Overview
- DSNU Series double-acting round pneumatic cylinder
- Conforms to ISO 6432 standards
- Pneumatic cushioning, self-adjusting at both ends
- No adjustment required, time-saving and powerful
- Positioning sensing via proximity sensor
- Piston rod and cylinder barrel made from stainless steel
- Bearing and end caps made from wrought aluminium alloy
- Suitable for small to high loads, low to medium speeds and medium impact energies applications
- Good running performance and long service life
Technical Specifications
| Cylinder / Drive Type | Round Cylinder with Piston Rod |
|---|---|
| Piston Diameter | 16mm |
| Operating Pressure Max | 10bar |
| Standards | DIN ISO 6432 |
| SVHC | No SVHC (25-Jun-2020) |
| Mode of Operation | Double Acting |
|---|---|
| Pneumatic Connection | M5 |
| Stroke Length | 20mm |
| Product Range | DSNU |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84123100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2020) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .09133 |
