MS 56 15

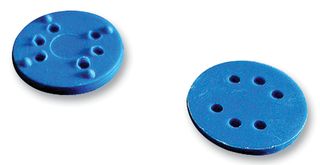

Mounting Pad, Transistor, Round, Glass Reinforced Polyamide, TO-5 6P, 9.5 mm, 205°C Max Temp
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | FISCHER ELEKTRONIK |
|---|---|
| Manufacturer Part No | MS 56 15Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1619037 |
| Your Part Number | |
| Technical Datasheet |
72,920 total stock globally
Need more?
72,920 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 10+ | $0.233 ($0.268) |
| 50+ | $0.211 ($0.2426) |
| 100+ | $0.178 ($0.2047) |
| 500+ | $0.168 ($0.1932) |
Price for:Each
Minimum: 10
Multiple: 10
$2.33 ($2.68 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | FISCHER ELEKTRONIK |
|---|---|
| Manufacturer Part No | MS 56 15Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1619037 |
| Technical Datasheet | |
| Thickness | - |
| Conductive Material | 0 |
| Thermal Conductivity | - |
| Thermal Impedance | - |
| Volume Resistivity | - |
| External Length | - |
| External Width | 9.5mm |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The MS 56-15 is a Transistor Mounting Pad for use with TO-5 or TO-6 case style semiconductors. It features GF reinforced polyamide 6 material.
- UL94V-0/UL94V-1 Flammability rating
- -40 to +205°C Operating temperature
Applications
Thermal Management, Industrial
Technical Specifications
| Thickness | - |
|---|---|
| Thermal Conductivity | - |
| Volume Resistivity | - |
| External Width | 9.5mm |
| SVHC | No SVHC (04-Feb-2026) |
| Conductive Material | 0 |
|---|---|
| Thermal Impedance | - |
| External Length | - |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85419000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002025 |
