| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | UMFT230XA-01Copy |
| Manufacturer Standard Lead Time | 44 weeks |
| Order Code | 2081343 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $36.530 ($42.0095) |
Product Information
| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | UMFT230XA-01Copy |
| Manufacturer Standard Lead Time | 44 weeks |
| Order Code | 2081343 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB to UART |
| Silicon Manufacturer | FTDI |
| Silicon Core Number | 0 |
| Product Range | - |
| Kit Contents | Eval Board FT230XQ |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

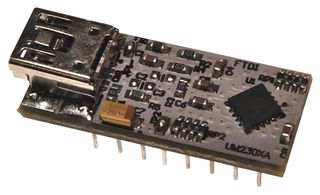

UMFT230XA-01 is a FT230X based USB to basic UART development module. This is a development module for FTDI’s FT230XQ, one of the devices from FTDI’s range of USB interface bridging integrated circuit devices. FT230X is a USB to UART interface with a battery charger detection feature, which can allow batteries to be charged with a higher current from a dedicated charger port (without the FT230X being enumerated). In addition, asynchronous and synchronous bit bang interface modes are available. The internally generated clock (6MHz, 12MHz and 24MHz) can be brought out of the on one of the CBUS pin to be used to drive a microprocessor or external logic.
- UMFT230XA-01 module is designed to plug into a standard 0.3" wide 16 pin DIP socket
- Long pin variant: 5.6mm
- On board USB ‘mini-B’ socket allows module to be connected to PC via standard A to mini-B USB cable
- Functionally configurable using solder links
- Default solder links setup enables module to function without peripheral wires or application board
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | FTDI |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB to UART |
|---|---|
| Silicon Core Number | 0 |
| Kit Contents | Eval Board FT230XQ |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
