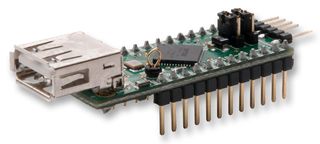

V2DIP1-48
Development Module, VNC2-48Q USB HOST Control, DIP-24, Vinculum-II USB Core
- Manufacturer:
- FTDI FTDI
- Manufacturer Part No:
- V2DIP1-48
- Order Code:
- 1825830
- Technical Datasheet:
- V2DIP1-48 Datasheet
Product Overview
V2DIP1-48 is a 48pin VNC2 based development module with single USB connector. The module is targeted for prototyping with the VNC2 and for application integration to enable USB capability within a finished product design. The VNC2 is the second of FTDI's Vinculum family of Embedded dual USB host controller devices. The VNC2 device provides USB Host interfacing capability for a variety of different USB device classes including support for BOMS, Printer, HID . For mass storage devices such as USB Flash drives, VNC2 also transparently handles the FAT file structure. Communication with non USB devices such as a low cost microcontroller is accomplished via either UART, SPI or parallel FIFO interfaces. VNC2 provides a new cost effective solution for providing USB Host capability into products that previously did not have the hardware resources available. The VNC2 supports the capability to enable customers to develop custom firmware using the Vinculum II development software tool suite.
- Uses FTDI's VNC2-48Q embedded USB host controller IC device
- Single USB 'A' type socket to interface with USB peripheral devices
- connections to second USB interface port available via module I/O pins
- Jumper selectable UART, parallel FIFO with or SPI MCU interfaces
- UART, parallel FIFO with and SPI interfaces can be programmed to a choice of available I/O pins
- All VNC2 signals available on 0.6" wide, 0.1" pitch DIL male connectors
- Power and traffic indicator LED's
- Debugger interface pin available via 6 way male header which interfaces to separate debugger module
- Development tool supports compiler, linker and debugger tools complete within an IDE
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Interface
- :
- USB Host Controller
- :
- FTDI
- :
- VNC2-48Q
- :
- -
- :
- DIP-24 Dev Module VNC2-48Q
Technical Docs (1)
19 total stock globally Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 19/07/21
19 available for 5 - 8 business days delivery
$36.58
(
$42.07
Inc. GST)
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
| Quantity | Price (Incl GST) | Your Price |
|---|---|---|
| 1+ | $36.58 ($42.07) | ( ) |
| 5+ | $36.49 ($41.96) | ( ) |
