Print Page
SIM7100-6-1-15-00-A
Memory Card Connector, Micro SIM, Push-Push, 6 Contacts, Phosphor Bronze, Gold Plated Contacts
2,038 total stock globally
1,000 more incoming. You can reserve stock now
2038 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.960 ($3.404) |
| 10+ | $2.520 ($2.898) |
| 25+ | $2.360 ($2.714) |
| 50+ | $2.240 ($2.576) |
| 100+ | $2.140 ($2.461) |
| 250+ | $2.000 ($2.300) |
| 500+ | $1.920 ($2.208) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$2.96 ($3.40 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerGCT
Manufacturer Part NoSIM7100-6-1-15-00-A
Order Code2678547
Product RangeSIM7100
Technical Datasheet
Memory / Card TypeMicro SIM
Insert & Eject MechanismPush-Push
No. of Contacts6Contacts
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeSIM7100
SVHCNo SVHC (27-Jun-2024)
Product Overview

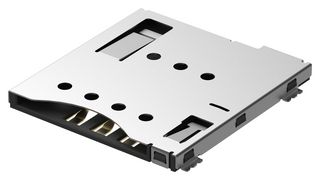

The SIM7100-6-1-15-00-A is a 6-position surface-mount PCB push-push 3FF Micro SIM connector with gold-plated phosphor bronze contacts. The SIM7100 series connector is made with black hi-temp thermoplastic housing and stainless steel metallic shell.
- UL94V-0 Flammability rating
- 1500 Cycles durability
- -40 to 85°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
Memory / Card Type
Micro SIM
No. of Contacts
6Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Insert & Eject Mechanism
Push-Push
Contact Material
Phosphor Bronze
Product Range
SIM7100
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00054
