87 total stock globally
Need more?
87 Delivery in 10-14 Business Days(US stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $8.260 ($9.499) |
| 5+ | $7.800 ($8.970) |
| 10+ | $7.330 ($8.4295) |
| 20+ | $6.700 ($7.705) |
| 50+ | $6.050 ($6.9575) |
Price for:Each
Minimum: 1
Multiple: 1
$8.26 ($9.50 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Overview

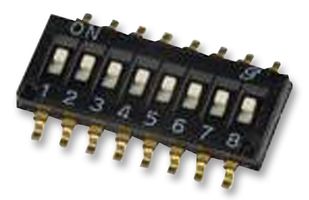

The 97C08ST is a 8-pole surface-mount DIP Switch with SPST contact configuration and recessed slide actuator. Used in any DIP application where space is at a premium such as notebook computers, hand-held radios, industrial control products, CD-ROM drives, cellular base stations and coin changers.
- Low profile
- 1000 Operations per switch position mechanical life
- 100mΩ Maximum contact resistance
- 5pF Maximum switch capacitance at 1MHz
- -40 to + 85°C Operating temperature
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Switch Actuator Style
Slide
Contact Configuration
SPST
Contact Current DC Max
25mA
Switch Type
DIP Sealed
Switch Mounting
Surface Mount
Contact Voltage DC Max
24VDC
Product Range
94H
Technical Docs (1)
Alternatives for 97C08ST
4 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000454
