AFG-2225

Function Generator, Arbitrary, 2 Channel, 25 MHz

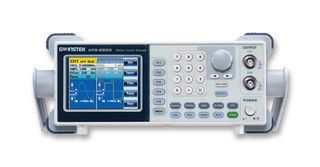

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
GW INSTEK GW INSTEK
Manufacturer Part No:
AFG-2225
Order Code:
2460252
Technical Datasheet:
AFG-2225   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Arbitrary, Function

:
2 Channel

:
-

:
25MHz

:
AM, Burst, FM, Frequency Counter, FSK, PM, SUM, Sweep

:
-

:
EU, UK

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The AFG-2225 is a 2-channel 25MHz True Arbitrary Function Generator provides superior features in its class. Both channels are equipped with same characteristics to fit dual-signal applications such as differential or IQ signaling. The outstanding cost-performance value makes the AFG-2225 a practical instrument to accelerate the development process. The major features for both channels include 10Vpp output amplitude, 25MHz frequency bandwidth with 1uHz resolution, built-in waveforms of sine, square, ramp (triangle) and noise. As to the 1 to 99% adjustable duty cycle of square waveform can be used as pulse signal sources. For the arbitrary waveform, user can edit the 66 built-in waveforms or create a whole new one. Moreover, AFG-2225 carries features of AM/FM/PM/FSK/SUM modulation, sweep, burst and frequency counter, which can be applied to various communication fields.
  • Wide frequency range from 1µHz to 25MHz (sine/square wave)
  • 1µHz Resolution in full range
  • Built-in standard 120MSa/s, 10-bit, 4k points arbitrary waveform for both channels
  • True dual-channel output, CH2 provides the same characteristics as CH1
  • Couple, tracking, phase operations of dual channel are supported
  • 1 to 99% Adjustable duty cycle for square waveform
  • High resolution and colored TFT LCD with friendly user interface
  • Multiple editing methods to edit arbitrary waveform easily
  • Built-in standard AM/FM/PM/FSK/SUM/sweep/burst and frequency counter
  • USB host/device interface for remote control and waveform editing
  • Offers multiple standard waveforms
  • Full-functions equipped dual-channel signal output capability
  • Correlated functions of dual-channel outputs
  • High-flexibility of arbitrary waveforms editing
  • Friendly operating interfaces and instant parameter display
  • 66 built-in arbitrary waveforms
  • Supports multi-change signal application
  • Impedance switch function
  • Provides USB host/device interface

Applications

Test & Measurement

Footnotes

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
