DAQ-909
Test Accessory, 10-Channel High Voltage/Current Multiplexer Module

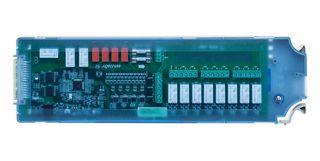

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGW INSTEK
Manufacturer Part NoDAQ-909
Order Code4380100
Product RangeDAQ-9600 Series
Technical Datasheet
2 total stock globally
Need more?
2 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,015.250 ($1,167.5375) |
Price for:Each
Minimum: 1
Multiple: 1
$1,015.25 ($1,167.54 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerGW INSTEK
Manufacturer Part NoDAQ-909
Order Code4380100
Product RangeDAQ-9600 Series
Technical Datasheet
Accessory Type10-Channel High Voltage/Current Multiplexer Module
Product RangeDAQ-9600 Series
SVHCNo SVHC (10-Jun-2022)
Product Overview
DAQ-909 is an 8+2 channels high voltage high current multiplexer specially designed for high voltage, providing 8 channels for DC 600V / AC 400Vrms voltage measurement. The additional 2 current input channels can be used for AC and DC current measurement, external shunt resistors are not required (maximum 2A / per channel).
- Switching speed of 3ms
- DC voltage of 600V, current of 2A
- 2-wire and 4-wire scanning
- Additional 2 channels can directly measure current (2A/per channel)
Technical Specifications
Accessory Type
10-Channel High Voltage/Current Multiplexer Module
Product Range
DAQ-9600 Series
For Use With
GW Instek DAQ-9600 Series Data Acquisition System
SVHC
No SVHC (10-Jun-2022)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:3A992.a
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.6
