02 02 160 2201

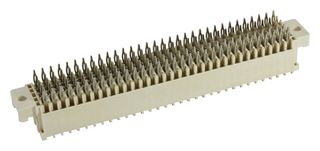

DIN 41612 Connector, har-bus 64, 160 Contacts, Receptacle, 2.54 mm, 5 Row, z + a + b + c + d

| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 02 02 160 2201Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1608501 |
| Product Range | har-bus 64 |
| Your Part Number | |
| Technical Datasheet |
560 more incoming. You can reserve stock now
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $45.210 ($51.9915) |
| 10+ | $44.740 ($51.451) |
| 25+ | $44.260 ($50.899) |
| 100+ | $42.930 ($49.3695) |
| 250+ | $42.070 ($48.3805) |
Product Information
| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 02 02 160 2201Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1608501 |
| Product Range | har-bus 64 |
| Technical Datasheet | |
| Product Range | har-bus 64 |
| No. of Contacts | 160Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Pitch Spacing | 2.54mm |
| No. of Rows | 5 Row |
| Rows Loaded | z + a + b + c + d |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| No. of Mating Cycles | 250 |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 02 02 160 2201 is a Harting har-bus® 64 160-position Female DIN 41612 Backplane Signal Connector, with flange, straight orientation, copper alloy contacts with gold over nickel plated and press in termination and length 4.5/5.0mm. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PL 2 according to IEC 61076-4-113 250 mating cycles
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
| Product Range | har-bus 64 |
|---|---|
| Gender | Receptacle |
| No. of Rows | 5 Row |
| Contact Plating | Gold Plated Contacts |
| No. of Mating Cycles | 250 |
| No. of Contacts | 160Contacts |
|---|---|
| Pitch Spacing | 2.54mm |
| Rows Loaded | z + a + b + c + d |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Alternatives for 02 02 160 2201
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .020412 |
