02 05 000 0004

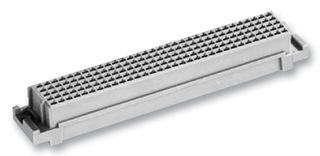

DIN 41612 Connector, har-bus 64, 160 Contacts, Receptacle, 2.54 mm, 5 Row, z + a + b + c + d
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $34.650 ($39.8475) |
| 5+ | $32.350 ($37.2025) |
| 10+ | $30.840 ($35.466) |
| 25+ | $29.070 ($33.4305) |
| 50+ | $27.510 ($31.6365) |
| 100+ | $26.510 ($30.4865) |
| 250+ | $25.500 ($29.325) |
Product Information
Product Overview
The 02050000004 is a 2.54mm 160-position 5-row HAR-BUS® 64 VME64X Female Connector for crimp contacts and use in HAR-BUS® 64 shroud. Straight orientation, with flange, copper alloy contacts and crimp termination. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PBT Insulation with UL94V-0 classification
- Additional contacts for I/O and system upgrade
- Supports plug-and-play function
- Improved signal/ground ratio for reliable signal data transfer
- Live insertion for replacing processor or memory cards without closing down system
Applications
Industrial
Technical Specifications
har-bus 64
Receptacle
5 Row
Gold Plated Contacts
-
160Contacts
2.54mm
z + a + b + c + d
Copper
No SVHC (25-Jun-2025)
