09 03 132 6921

DIN 41612 Connector, Type C Series, 32 Contacts, Plug, 2.54 mm, 2 Row, a + c

09 03 132 6921 - DIN 41612 Connector, Type C Series, 32 Contacts, Plug, 2.54 mm, 2 Row, a + c

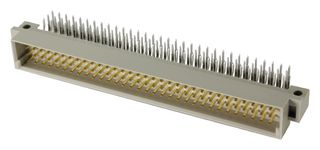

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HARTING HARTING
Manufacturer Part No:
09 03 132 6921
Order Code:
1096902
Product Range
Type C Series
Technical Datasheet:
09 03 132 6921   Datasheet
See all Technical Docs

Product Overview

The 09 03 132 6921 is a 32-position 2-row angled male DIN 41612 Signal Connector with flange, type C, 2.54mm pitch, solder pins termination and solder length at 3mm. Gold over nickel plated copper alloy contacts. The DIN 41612 connector is the standard for board-to-board and cable-to-board connections as both data and power connectors. HARTING offers a wide range of standard connectors complying with DIN 41612 and IEC 60 603-2. Depending on the application, the 3 to 160 way connectors are offered with various termination methods, each contact capable of carrying from 2A to 40A. HARTING differentiates between DIN Signal and DIN Power connectors depending on the maximum allowed working current per contact up to 2A for DIN Signal and over 2A for DIN Power connectors. HARTING's range har-bus® 64 features 160 contacts and is an extension of the 3 row 96 way DIN 41612 C type range with 2 additional rows.
  • PL 2 according to IEC 60603-2 250 mating cycles
  • UL94V-0 Flammability rating

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Type C Series

:
32Contacts

:
Plug

:
2.54mm

:
2 Row

:
a + c

:
Gold Plated Contacts

:
Copper

:
400
