M50-3602042

Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 40 Contacts, Surface Mount, Archer M50 Series

M50-3602042 - Pin Header, Board-to-Board, 1.27 mm, 2 Rows, 40 Contacts, Surface Mount, Archer M50 Series

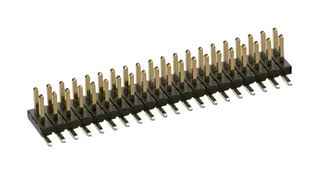

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HARWIN HARWIN
Manufacturer Part No:
M50-3602042
Order Code:
1022312
Product Range
Archer M50 Series
Technical Datasheet:
M50-3602042   Datasheet
See all Technical Docs

Product Overview

The M50-3602042 is a 40-contact 2-row 1.27mm male Board-to-board Pin Header with gold plated brass contacts, 100% tin over nickel plated termination and black UL94V-0 polyamide (nylon) 6T housing. The M50 series plug has 3mm mating pin height, vertical connector orientation and surface mount (SMT) connection type. It is suitable for use with 0.4mm square mating pin size.
  • 1A Current rating
  • 20mR Maximum contact resistance
  • 1000MR Minimum insulation resistance
  • 1000VAC for one minute Dielectric withstanding voltage
  • 300 cycles minimum Durability

Applications

Commercial, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Board-to-Board

:
1.27mm

:
2Rows

:
40Contacts

:
Surface Mount

:
Archer M50 Series

:
Unshrouded

:
Copper Alloy

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (5)

446 total stock globally Need more?

366 available for 4 - 5 business days delivery
80 available for 5 - 6 business days delivery

$4.07 ( $4.68  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 5 Minimum: 5
Quantity Price (Incl GST) Your Price


5+ $4.07 ($4.68)
