M80-4000000F1-08-325-00-000
Rectangular Connector, Datamate J-Tek M80, 8 Contacts, Receptacle, 4 mm, Crimp, 1 Row
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoM80-4000000F1-08-325-00-000Copy
Manufacturer Standard Lead Time12 weeks
Order Code1895197
Product RangeDatamate J-Tek M80
Your Part Number
103 total stock globally
Need more?
103 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $69.370 ($79.7755) |
| 5+ | $64.170 ($73.7955) |
| 10+ | $58.960 ($67.804) |
| 25+ | $55.270 ($63.5605) |
| 50+ | $52.720 ($60.628) |
| 100+ | $50.630 ($58.2245) |
Price for:Each
Minimum: 1
Multiple: 1
$69.37 ($79.78 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM80-4000000F1-08-325-00-000Copy
Manufacturer Standard Lead Time12 weeks
Order Code1895197
Product RangeDatamate J-Tek M80
Technical Datasheet
Product RangeDatamate J-Tek M80
No. of Contacts8Contacts
Pitch Spacing4mm
Contact Termination TypeCrimp
No. of Rows1 Row
Connector MountingPanel Mount
Contact PlatingGold Plated Contacts
Contact MaterialBeryllium Copper
SVHCLead (04-Feb-2026)
Product Overview
M80-4000000F1-08-325-00-000 is an 8-position, female SIL 12AWG cable connection kit.
- 4.00mm pitch high-reliability connector - Datamate Power
- Power solder contact suitable for 12 AWG, gold finish on contact area and termination
- Style of jackscrews: screw fixing (floating) with slotted head
- Straight connector orientation
- 8 number of power/coax contacts
- Operating temperature range from -55°C to +125°C
- 20A max per contact current rating
- PPS housing, brass base material of contact, black housing colour
- 4.00mm (0.157") contact pitch
- M2 thread size
Contents

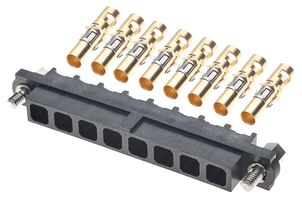

Housing (with hexagonal slotted jackscrews) with 8 x power contacts supplied loose.
Technical Specifications
Product Range
Datamate J-Tek M80
Gender
Receptacle
Contact Termination Type
Crimp
Connector Mounting
Panel Mount
Contact Material
Beryllium Copper
No. of Contacts
8Contacts
Pitch Spacing
4mm
No. of Rows
1 Row
Contact Plating
Gold Plated Contacts
SVHC
Lead (04-Feb-2026)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00471
