FH12-40S-0.5SVA(54)

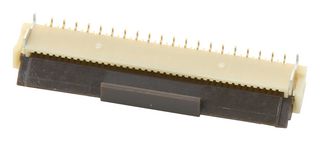

FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 40 Contacts, Receptacle, FH12 Series
- Manufacturer:
- HIROSE(HRS) HIROSE(HRS)
- Manufacturer Part No:
- FH12-40S-0.5SVA(54)
- Order Code:
- 2564806
- Product Range
- FH12 Series
- Also Known As:
- 586-0804-5-54
- Technical Datasheet:
- FH12-40S-0.5SVA(54) Datasheet
Product Overview
The FH12-40S-0.5SV(55) is a 40-position 1-row 0.5mm female FPC/FFC Receptacle with beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated metal fitting. The FH12 series socket/connector with vertical FPC-FFC insertion direction/actuator position/contact orientation and SMT vertical mounting type. The one-touch rotating ZIF mechanism is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12's one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts are offered with a reinforced actuator that provides an extra measure of security against actuator breakage.
- Rotating one-touch ZIF mechanism
- Clear tactile click
- Supports high density mounting
- Reinforced actuator
- 0.5A Rated current
- 50VAC/DC Rated voltage
- 50mR Maximum contact resistance
- 500MR Minimum insulation resistance
- 150VAC for one minute Withstanding voltage
- 20 Mating/unmating cycles
Applications
Industrial
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 0.5mm
- :
- 40Contacts
- :
- Receptacle
- :
- FH12 Series
- :
- Surface Mount
- :
- -
- :
- 1 Row
- :
- Gold Plated Contacts
- :
- Phosphor Bronze
- :
- 0.3mm
Technical Docs (3)
Also Known As
586-0804-5-54
Packaging type
Cut Tape
305 total stock globally Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
1,000 more will be available on 18/11/20
Extra stock is available upon order to the Supplier Lead Time which is approximately 28/12/20
305 available for 4 - 5 business days delivery
$3.85
(
$4.43
Inc. GST)
Pricing is unavailable. Please contact customer services.
- Price for:
- Each (Supplied on Cut Tape)
Multiple: 1 Minimum: 1
| Quantity | Price (Incl GST) | Your Price |
|---|---|---|
| 1+ | $3.85 ($4.43) | ( ) |
| 10+ | $3.14 ($3.61) | ( ) |
| 100+ | $3.00 ($3.45) | ( ) |
| 250+ | $2.70 ($3.11) | ( ) |
| 500+ | $2.48 ($2.85) | ( ) |
| 1000+ | $2.13 ($2.45) | ( ) |
