TM11APA-88P(03)
Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cat3, Cable Mount

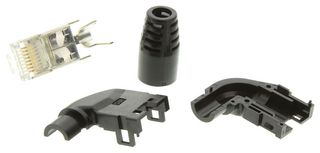

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIROSE / HRS
Manufacturer Part NoTM11APA-88P(03)
Order Code1719114
Product RangeTM11P
Also Known As222-2781-9-03
Technical Datasheet
269 total stock globally
300 more incoming. You can reserve stock now
269 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $8.650 ($9.9475) |
Price for:Each
Minimum: 1
Multiple: 1
$8.65 ($9.95 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHIROSE / HRS
Manufacturer Part NoTM11APA-88P(03)
Order Code1719114
Product RangeTM11P
Also Known As222-2781-9-03
Technical Datasheet
Modular Connector TypeRJ45 Plug
Port Configuration1 x 1 (Port)
No. of Positions / Loaded Contacts (per Port)8P8C
LAN CategoryCat3
IP Rating-
Connector MountingCable Mount
Connector OrientationVertical
ShieldingUnshielded
MagneticsWithout Magnetics
LEDsWithout LED
Light PipesWithout Light Pipe
Product RangeTM11P
SVHCNo SVHC (23-Jan-2024)
Product Overview
The TM11APA-88P(03) is a 8P8C/RJ45 Modular Jack with clear polycarbonate plug case, gold-plated phosphor bronze terminal and beige polycarbonate cover.
- 100MΩ at 100VDC Minimum insulation resistance
- 500VRMS AC/minute Withstanding voltage
- 0.5A/pin Current rating
- 125VAC/pin Voltage rating
Applications
Industrial
Technical Specifications
Modular Connector Type
RJ45 Plug
No. of Positions / Loaded Contacts (per Port)
8P8C
IP Rating
-
Connector Orientation
Vertical
Magnetics
Without Magnetics
Light Pipes
Without Light Pipe
SVHC
No SVHC (23-Jan-2024)
Port Configuration
1 x 1 (Port)
LAN Category
Cat3
Connector Mounting
Cable Mount
Shielding
Unshielded
LEDs
Without LED
Product Range
TM11P
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00958
