931714100
Binding Post, PKI 110 Series, 35 A, 60 V, Nickel Plated Contacts, Panel Mount, Black

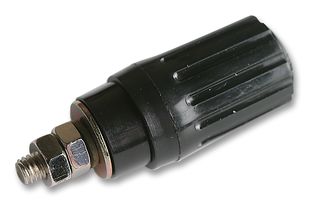

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 931714100Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1176479 |
| Product Range | PKI 110 Series |
| Your Part Number | |
| Technical Datasheet |
36 total stock globally
Need more?
36 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $44.430 ($51.0945) |
Price for:Pack of 5
Minimum: 1
Multiple: 1
$44.43 ($51.09 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 931714100Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1176479 |
| Product Range | PKI 110 Series |
| Technical Datasheet | |
| Product Range | PKI 110 Series |
| Current Rating | 35A |
| Voltage Rating | 60V |
| Contact Plating | Nickel Plated Contacts |
| Connector Mounting | Panel Mount |
| Connector Colour | Black |
| Contact Material | Brass |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
Pole terminal with claw edge, captive insulated head and insulated ring. 4 mm diameter nickel-plated brass threaded bolt with 2 mm diameter transverse hole. For insulated, non-rotating installation in equipment chassis and switch panels up to 3.5 mm wall thickness.
- 4 mm system
- Sockets
- M4 thread connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 35 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Technical Specifications
| Product Range | PKI 110 Series |
|---|---|
| Voltage Rating | 60V |
| Connector Mounting | Panel Mount |
| Contact Material | Brass |
| Current Rating | 35A |
|---|---|
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Black |
| SVHC | No SVHC (23-Jan-2024) |
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .054 |
