24PCGFM6G
Pressure Sensor, Miniature, Silicon, Gauge, 0 psi, 250 psi, 2.5 VDC, 12 VDC, SIP

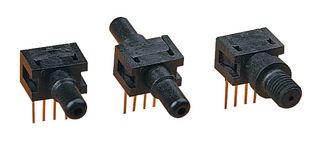

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHONEYWELL
Manufacturer Part No24PCGFM6G
Order Code731730
Product Range24PC Series
Technical Datasheet
34 total stock globally
Need more?
34 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $153.670 ($176.7205) |
Price for:Each
Minimum: 1
Multiple: 1
$153.67 ($176.72 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHONEYWELL
Manufacturer Part No24PCGFM6G
Order Code731730
Product Range24PC Series
Technical Datasheet
Pressure TypeGauge
Operating Pressure Min0psi
Sensor Output TypeAnalogue
Pressure Measurement TypeGauge
Operating Pressure Max250psi
Supply Voltage Min2.5VDC
Voltage Rating10VDC
Port StyleSingle Side Port
Supply Voltage Max12VDC
Supply Current2mA
Sensor Case / PackageSIP
No. of Pins4Pins
Sensor Output TypeAnalogue
Accuracy-
Pressure Port TypeThreaded
Sensor MountingThrough Hole
Output Interface-
Media TypeGas, Liquid
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range24PC Series
Qualification-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 24PCGFM6G is a Miniature Pressure Sensor provides reliable gage pressure sensing performance in a compact package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined sensing element. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 0.5psi through 250psi sensing ranges.
- Gage, vacuum gage measurement type
- Unamplified signal conditioning
- -40 to 85°C Operating temperature
Applications
Industrial, Medical, Sensing & Instrumentation
Technical Specifications
Pressure Type
Gauge
Sensor Output Type
Analogue
Operating Pressure Max
250psi
Voltage Rating
10VDC
Supply Voltage Max
12VDC
Sensor Case / Package
SIP
Sensor Output Type
Analogue
Pressure Port Type
Threaded
Output Interface
-
Operating Temperature Min
-40°C
Product Range
24PC Series
SVHC
No SVHC (10-Jun-2022)
Operating Pressure Min
0psi
Pressure Measurement Type
Gauge
Supply Voltage Min
2.5VDC
Port Style
Single Side Port
Supply Current
2mA
No. of Pins
4Pins
Accuracy
-
Sensor Mounting
Through Hole
Media Type
Gas, Liquid
Operating Temperature Max
85°C
Qualification
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90329000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
