PMASF570S/11PC185/11PC185/36IN

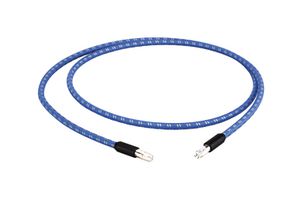

RF / Coaxial Cable Assembly, 36 ", 914 mm, SUCOFLEX 570S, 1.85 mm Straight Plug
| Manufacturer | HUBER+SUHNER |
|---|---|
| Manufacturer Part No | PMASF570S/11PC185/11PC185/36INCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4163797 |
| Product Range | Sucoflex 500 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $5,210.270 ($5,991.8105) |
| 5+ | $4,558.980 ($5,242.827) |
| 10+ | $4,190.020 ($4,818.523) |
Product Information
| Manufacturer | HUBER+SUHNER |
|---|---|
| Manufacturer Part No | PMASF570S/11PC185/11PC185/36INCopy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 4163797 |
| Product Range | Sucoflex 500 Series |
| Technical Datasheet | |
| Cable Length - Imperial | 36" |
| Connector to Connector | 1.85mm Plug to 1.85mm Plug |
| Cable Length - Metric | 914mm |
| Coaxial Cable Type | SUCOFLEX 570S |
| Connector Type A | 1.85 mm Straight Plug |
| Connector Type B | 1.85 mm Straight Plug |
| Impedance | 50ohm |
| Jacket Colour | - |
| Product Range | Sucoflex 500 Series |
Product Overview
PMA SF570S/11PC185/11PC185/36IN is a SUCOFLEX® 500 series of high-end microwave cable assembly that is designed to deliver consistent, repeatable measurements over time. With a proprietary cable and connector design, these assemblies offer exceptional phase and amplitude stability, along with excellent return and insertion loss at frequencies up to 70GHz. HUBER+SUHNER’s patented innovative Rotary Swaging technology blends the strengths of both solid and stranded conductors into a single optimized design. This approach minimizes signal loss, ensures superior electrical stability during bending, and enhances cable flexibility, all while significantly extending the product's lifespan.
- High performance up to 70GHz
- Very long service life >100’000 cycles
- Excellent insertion loss
- Phase and amplitude stability with flexure and movement
- Torque, crush, and kink resistance
- Abrasion, moisture and dust resistance
- Extremely precise and repeatable measurements
- Minimizes replacement needs and reduces investment costs
- Designed for easy handling and usability
- Short delivery time, excellent price-performance ratio
Technical Specifications
| Cable Length - Imperial | 36" |
|---|---|
| Cable Length - Metric | 914mm |
| Connector Type A | 1.85 mm Straight Plug |
| Impedance | 50ohm |
| Product Range | Sucoflex 500 Series |
| Connector to Connector | 1.85mm Plug to 1.85mm Plug |
|---|---|
| Coaxial Cable Type | SUCOFLEX 570S |
| Connector Type B | 1.85 mm Straight Plug |
| Jacket Colour | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Poland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00001 |
