Product Overview

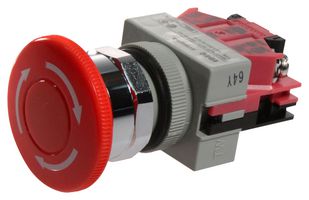

The AVW401-R is a 40mm Emergency-Stop Pushbutton Switch with push lock - turn reset operation. It features a chrome plated octagonal locking ring that fastens from the front of the panel. Modular construction with snap-on contacts allows for great flexibility in configuration.
- 1NC contact configuration
- 40mm mushroom head
- Corrosion-resistant octagonal chrome-plated locking bezel
- 10A snap-on contact current rating
- Modular construction for maximum flexibility
- NEMA 4X and IP65 watertight/oil-tight panel sealing
- UL listed, CSA certified, TUV approved and CE marked
Applications
Industrial, HVAC, Safety
Technical Specifications
Contact Configuration
SPST-NC
Switch Terminals
Screw
IP Rating
IP65
Switch Operation
Pushlock Turn Reset
Pushbutton Actuator Style
Mushroom
Product Range
TW
Technical Docs (1)
Alternatives for AVW401-R
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.074844
