24VBATTSWITCHDEMOTOBO1
Evaluation Board, 24V ADR Switch Demonstration Board, Automotive
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $554.660 ($637.859) |
Product Information
Product Overview

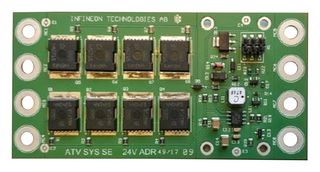

24V ADR Switch Demonstrator shows a semiconductor based solution of a 24 V battery master switch for trucks as required by the ADR regulation (European Agreement Concerning the International Carriage of Dangerous Goods by Road). The demonstrator consists of eight low ohmic MOSFETs connected in parallel and mounted on a structured copper IMS (insulated metal substrate) board together with a gate driver circuit to switch those MOSFETs on and off. In order to protect the MOSFETs against excessive overvoltage there are four transient voltage suppressor diodes implemented at the bottom side of the board.
- 50 x 100mm size
- 300A output current
- 36V maximum output voltage
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Power Management - Battery
No SVHC (21-Jan-2025)
Battery Disconnect Switch
