BSZ019N03LSATMA1
Power MOSFET, N Channel, 30 V, 149 A, 0.0019 ohm, TSDSON-FL, Surface Mount

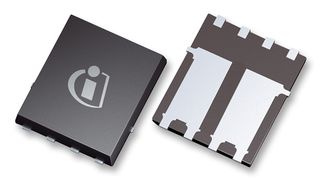

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoBSZ019N03LSATMA1
Order Code2443425
Product RangeOptiMOS Series
Also Known AsBSZ019N03LS, SP000792362
Technical Datasheet
3,356 total stock globally
Need more?
3356 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.340 ($3.841) |
| 10+ | $2.270 ($2.6105) |
| 100+ | $1.490 ($1.7135) |
| 500+ | $1.440 ($1.656) |
| 1000+ | $1.370 ($1.5755) |
| 5000+ | $1.170 ($1.3455) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$3.34 ($3.84 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoBSZ019N03LSATMA1
Order Code2443425
Product RangeOptiMOS Series
Also Known AsBSZ019N03LS, SP000792362
Technical Datasheet
Channel TypeN Channel
Drain Source Voltage Vds30V
Continuous Drain Current Id149A
Drain Source On State Resistance0.0019ohm
Transistor Case StyleTSDSON-FL
Transistor MountingSurface Mount
Rds(on) Test Voltage10V
Gate Source Threshold Voltage Max2V
Power Dissipation69W
No. of Pins8Pins
Operating Temperature Max150°C
Product RangeOptiMOS Series
Qualification-
MSLMSL 1 - Unlimited
SVHCNo SVHC (21-Jan-2025)
Product Overview
- OptiMOS™ power N-channel MOSFET
- Optimized for high performance buck converter(Server,VGA), very Low FOMQ OSS for high frequency SMPS
- Low FOMSW for high frequency SMPS
- Excellent gate charge xRDS (on) product (FOM), very low on-resistance RDS(on) at VGS=4.5V
- 100% avalanche tested, superior thermal resistance
- Qualified according to JEDEC for target applications
- 1.8K/W maximum thermal resistance, junction - case
- 30V minimum drain-source breakdown voltage (VGS=0V, ID=1mA)
- 0.4 to 1.6ohm gate resistance range (Tj=25°C)
- PG-TSDSON-8 FL package, operating and storage temperature range from -55 to 150°C
