DD180N16SHPSA1
Diode Module, 1.6 kV, 226 A, 1.39 V, Dual Series, Module, 3 Pins

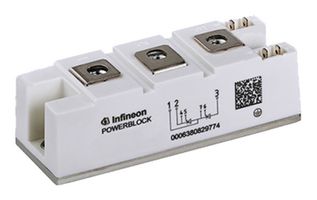

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | DD180N16SHPSA1Copy |
| Manufacturer Standard Lead Time | 53 weeks |
| Order Code | 3234258 |
| Also Known As | DD180N16S, SP001495438 |
| Your Part Number | |
| Technical Datasheet |
6 total stock globally
88 more incoming. You can reserve stock now
6 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $100.690 ($115.7935) |
| 5+ | $66.100 ($76.015) |
| 10+ | $64.780 ($74.497) |
| 50+ | $63.460 ($72.979) |
| 100+ | $62.130 ($71.4495) |
Price for:Each
Minimum: 1
Multiple: 1
$100.69 ($115.79 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | DD180N16SHPSA1Copy |
| Manufacturer Standard Lead Time | 53 weeks |
| Order Code | 3234258 |
| Also Known As | DD180N16S, SP001495438 |
| Technical Datasheet | |
| Repetitive Peak Reverse Voltage | 1.6kV |
| Average Forward Current | 226A |
| Forward Voltage Max | 1.39V |
| Diode Module Configuration | Dual Series |
| Diode Case Style | Module |
| No. of Pins | 3Pins |
| Operating Temperature Max | 135°C |
| Forward Surge Current | 5.75kA |
| Diode Mounting | Panel |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Repetitive Peak Reverse Voltage | 1.6kV |
|---|---|
| Forward Voltage Max | 1.39V |
| Diode Case Style | Module |
| Operating Temperature Max | 135°C |
| Diode Mounting | Panel |
| SVHC | No SVHC (04-Feb-2026) |
| Average Forward Current | 226A |
|---|---|
| Diode Module Configuration | Dual Series |
| No. of Pins | 3Pins |
| Forward Surge Current | 5.75kA |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0001 |
