MOS7GENERICPOWBOARDTOBO1

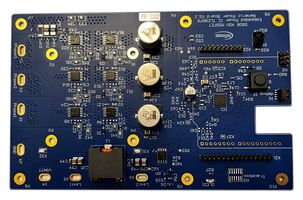

Evaluation Board, TLE9879QXA40XUMA2, 3 Phase BLDC Motor Controller
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoMOS7GENERICPOWBOARDTOBO1
Order Code4588875
Also Known AsMOS7_GENERIC_POW_BOARD, SP006016660
Technical Datasheet
4 total stock globally
Need more?
4 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $630.600 ($725.190) |
Price for:Each
Minimum: 1
Multiple: 1
$630.60 ($725.19 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoMOS7GENERICPOWBOARDTOBO1
Order Code4588875
Also Known AsMOS7_GENERIC_POW_BOARD, SP006016660
Technical Datasheet
Application Sub Type3 Phase BLDC Motor Controller
Silicon ManufacturerInfineon
Kit Application TypePower Management
Silicon Core NumberTLE9879QXA40XUMA2
Kit ContentsGeneric Power Evaluation Board TLE9879QXA40XUMA2
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MOS7GENERICPOWBOARDTOBO1 is a 12V automotive motor control evaluation board. The generic power evaluation board is a complete solution for BLDC motor control applications. Powered by MOTIX™ TLE9879QXA40 32-bit motor control (SoC), featuring OptiMOS™ 7 MOSFETs, it is capable to drive loads up to 400W supplied by a battery voltage of 12V. This user manual contains a description of the design, schematics and measurement reports. Suitable for MOTIX™ automotive motor control 12V and automotive pump and fan systems applications.
- Drive loads up to 400W
- Thermally optimized and EMC optimized
- Automotive engine cooling fan application
- MOSFET controlled by MOSFET driver integrated in SoC
- Drive loads up to 400W at a battery voltage of 12V
- Design description, schematics and measurements
- EMC testing according to CISPR25 standard
Technical Specifications
Application Sub Type
3 Phase BLDC Motor Controller
Kit Application Type
Power Management
Kit Contents
Generic Power Evaluation Board TLE9879QXA40XUMA2
SVHC
No SVHC (21-Jan-2025)
Silicon Manufacturer
Infineon
Silicon Core Number
TLE9879QXA40XUMA2
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:3A991.a.2
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
