| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS850C2TEV50BOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3865682 |
| Also Known As | SP005567498, TLS850C2TE V50 BOARD |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $103.990 ($119.5885) |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLS850C2TEV50BOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3865682 |
| Also Known As | SP005567498, TLS850C2TE V50 BOARD |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | TLS850C2TEV50 |
| Kit Application Type | Power Management |
| Application Sub Type | Linear Regulator |
| Kit Contents | Demo Board TLS850C2TEV50 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

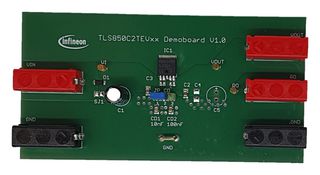

Demo board of TLS850C2TE V50, 500mA, 5V, TO-252-5 (DPAK), always on, low Iq. Demo board enables evaluation of Infineon’s latest high performance automotive LDO of the OPTIREG™ family. With an input voltage range of 3V to 40V and very this regulator is perfectly suitable for automotive or other supply systems permanently connected to battery. The very low quiescent current of only 20µA makes the TLS850C2TE particularly suitable for always-on applications. The reset feature supervises the output voltage, including under-voltage reset and delayed reset at power-on. Suitable for body and comfort applications such dashboard and cluster supply, Body Control module (BCM), gateway, HVAC, always-on battery-connected applications, powertrain and EPS.
- Plug and play evaluation capability
- Easy verification and configuration
- Easy to use banana connectors
- Selectable reset delay timings
- Test points for advanced verification
- Placeholder sockets for additional output capacitance
- AEC-Q100 qualified
- Demonstrate the capabilities of TLS850C2TE V50
- Save design time
- Allow easy application adaption for evaluation
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Demo Board TLS850C2TEV50 |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | TLS850C2TEV50 |
|---|---|
| Application Sub Type | Linear Regulator |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .24 |
