DEU9SA197F0
D Sub Connector Housing, 9 Ways, D Sub, DE, D*U, Receptacle, Steel Body

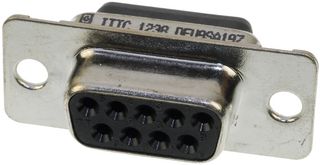

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDEU9SA197F0
Order Code2576089
Product RangeD*U
Technical Datasheet
212 total stock globally
250 more incoming. You can reserve stock now
212 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $6.920 ($7.958) |
| 120+ | $6.780 ($7.797) |
| 280+ | $6.400 ($7.360) |
Price for:Each
Minimum: 1
Multiple: 1
$6.92 ($7.96 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDEU9SA197F0
Order Code2576089
Product RangeD*U
Technical Datasheet
No. of Positions9Ways
Connector TypeD Sub
Connector Shell SizeDE
Product RangeD*U
Connector Body MaterialSteel Body
For Use WithSize 20 Contacts
SVHCNo SVHC (17-Dec-2014)
Product Overview
The DEU9SA197F0 is a D-sub Receptacle with gold over nickel plated copper alloy contact and tin/nickel plated steel shell. The 112052-0014 socket stamped receptacle features crimp termination and black glass filled Thermoplastic, type PCT UL94V-0 insulator.
- 5A Maximum electrical rating
- 15mΩ Maximum contact resistance
- 1000VAC at sea level Dielectric withstanding voltage
- -55/+125°C Operating temperature range
Applications
Computers & Computer Peripherals
Technical Specifications
No. of Positions
9Ways
Connector Shell Size
DE
Gender
Receptacle
For Use With
Size 20 Contacts
Connector Type
D Sub
Product Range
D*U
Connector Body Material
Steel Body
SVHC
No SVHC (17-Dec-2014)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85389099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004139
