50016M20PASW-F
Cable Gland, IP68 5 Bar, M20 x 1.5, 10 mm, 14 mm, Nylon 6 (Polyamide 6), Black, IP68

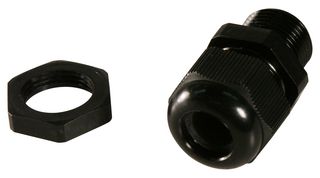

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJACOB
Manufacturer Part No50016M20PASW-F
Order Code1168785
Your Part Number
Technical Datasheet
733 total stock globally
1,625 more incoming. You can reserve stock now
733 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1.900 ($2.185) |
| 10+ | $1.850 ($2.1275) |
| 100+ | $1.790 ($2.0585) |
| 500+ | $1.650 ($1.8975) |
| 1000+ | $1.550 ($1.7825) |
| 2500+ | $1.520 ($1.748) |
Price for:Each
Minimum: 1
Multiple: 1
$1.90 ($2.18 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The 50016M20PASW-F is a M20 Black Cable Gland made of polyamide PA6 V-2 with dome top. It has polychloroprene-nitrile rubber CR/NBR sealing ring, wide sealing and clamping range. Sealing range and dome nut dimensions are identical to PERFECT Pg-series 50.0xx PAzzzz.
- Easy to install
- Integrated anchorage
- -20 to 100°C Temperature range
Applications
Industrial, Maintenance & Repair, Building Automation
Technical Specifications
Thread Size
M20 x 1.5
Cable Diameter Max
14mm
Gland Colour
Black
Product Range
-
Cable Diameter Min
10mm
Cable Gland Material
Nylon 6 (Polyamide 6)
IP / NEMA Rating
IP68
Technical Docs (1)
Alternatives for 50016M20PASW-F
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:39269097
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.016
