BM20B-SRDS-G-TF(LF)(SN)

Pin Header, Top Entry, Wire-to-Board, 1 mm, 2 Rows, 20 Contacts, Surface Mount, SHD Series

BM20B-SRDS-G-TF(LF)(SN) - Pin Header, Top Entry, Wire-to-Board, 1 mm, 2 Rows, 20 Contacts, Surface Mount, SHD Series

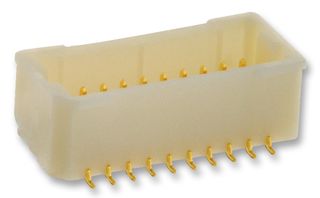

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
BM20B-SRDS-G-TF(LF)(SN)
Order Code:
1830846
Product Range
SHD Series
See all Technical Docs

Product Overview

The BM20B-SRDS-G-TF(LF)(SN) is a 2-contact 1mm pitch 2-row Crimp Connector, 1A, 50V rated. This SHD compact disconnectable wire to board Connector is made of gold plated nickel undercoated phosphor bronze header contact, ivory PA wafer, tin plated copper undercoated brass solder tab having top entry PC board mounting direction, although shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely affect vacuum gripping equipment and, the receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wire and 28AWG applicable wire gauge.
  • Anti-misinsertion feature
  • 20R Maximum contact resistance
  • 100MR Minimum insulation resistance
  • -25 to 85°C Operating temperature range

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Wire-to-Board

:
1mm

:
2Rows

:
20Contacts

:
Surface Mount

:
SHD Series

:
-

:
Brass

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Best Seller

Available for back order

Deliveries start from 21/11/20

Notify me when back in stock

$2.23 ( $2.56  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each (Supplied on Cut Tape)
Multiple: 10 Minimum: 10
