D9010JITA/R-B5P-001-A/R-B6P-001-L-AU

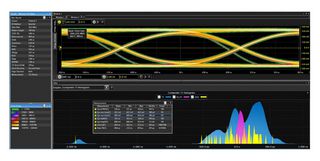

D9010JITA/R-B5P-001-A/R-B6P-001-L-AU is a D9010JITA and R-B5P-001-A node locked perpetual license with a R-B6P-001-L 12-month support subscription. D9010JITA is a jitter, vertical and phase noise analysis software for Infiniium 9000, S-, EXR-, MXR-series oscilloscopes. Time correlation of jitter to the real-time signal helps you easily trace jitter components to their sources. Additional compliance views and a measurement setup wizard now simplify and automate RJ/DJ separation for testing against industry standards. This software automatically detects embedded clock frequencies and repetitive patterns of the data on the oscilloscope inputs and calculates the level of data-dependent jitter that is contributed to the total jitter PDF by each transition in the pattern. It also comes with both spectral and tail-fit jitter separation algorithm. Since every waveform is different, multiple jitter separation solutions give you better answers for each individual waveform.

• Automatic setup wizard for creating jitter histograms, trends, and spectrums
• Automatic setup wizard for RJ/DJ separation via multiple algorithms, pattern lengths, BER levels
• Multiple clock recovery methods, calibration to remove RJ from oscilloscope
• Composite histograms and graphs of separated RJ, PJ, DJ, DDJ, DCD and ISI jitter subcomponents
• Composite histograms and graphs of separated TI, DDI, PI, ISI noise sub components
• Single side band (SSB) phase noise plots as log frequency vs. dBc/Hz
• Two channels and cross-correlation to reduce broadband measurement noise
• Differential clocks with reduced broadband measurement noise
• Broadband noise (RJ) reduction in cross-correlated time interval error (TIE) measurements
• Jitter measurement between two frequencies on phase noise plot and in circuit with InfiniiMax probes
