DSOX2022A/WAVEGEN/-AU

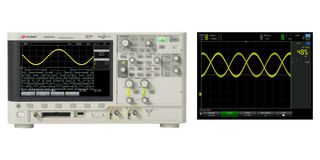

DSOX2022A/WAVEGEN/-AU is an InfiniiVision 2000 X-Series 2 channel, 200MHz digital signal oscilloscope. The InfiniiVision 2000 X-Series features Keysight's patented MegaZoom IV smart memory technology that is always enabled and always responsive providing the industry's fastest update rate at up to 200,000 waveforms per second, with no compromise if you turn on measurements or add digital channels. In addition, the 2000 X-Series offers 23 automated measurements such as voltage, time, and frequency as well as 14 waveform math functions including add, subtract, multiply, divide, and FFT.

• High resolution 8.5-inch WVGA (800 x 480) display
• Up to 200,000wfms/s update rate
• Fast, responsive MegaZoom IV deep memory, 1Mpts and segmented memory
• WaveGen built-in function generator (optional)
• Upgradable bandwidth, MSO, WaveGen built-in 20MHz function generator and measurement applications
• Connectivity: USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
• Dimensions (H x W x D): 204.47mm x 380.49mm x 141.47mm
• Advanced triggers
• The DVM upgrade is now free, and integrated on the 2000 and 3000 InfiniiVision X-Series

Contents

DSO N2863B 300 MHz, 10:1 passive probe, Certificate of calibration, Standard secure erase, Standard 5-year warranty, Documentation CD, Interface language support GUI menus, Built-in help language support, Localized power cord.
