MSOX3012A-AU

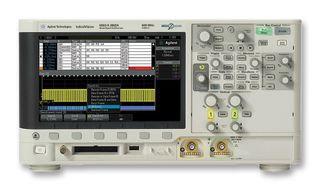

MSOX3012A-AU is an InfiniiVision 3000A X-series 100MHz mixed signal oscilloscope (MSO) with 2 +16 channels. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. Industry’s first 6- instruments-in-1 (oscilloscope, digital channels, built-in 20MHz function/ arbitrary waveform generator with modulation, integrated digital voltmeter frequency counter and protocol analyser).

• Easily view your signals on the 8.5inch WVGA display
• Capture more data with up to 4Mpts memory
• More signal detail with 1,000,000wfms/s update rate
• MegaZoom IV smart memory technology
• Standard segmented memory
• Features hardware-based mask testing and can perform up to 270,000 tests per second
• HDTV video triggering and measurement analysis
• Advanced math analysis
• Built-in USB host (one front, one back) and USB device ports make PC connectivity easy

Contents

MSOX3012A MSO, 3-year warranty (90 days for unserialized accessories such as passive probes), Certificate of calibration, 2-year calibration interval, Standard secure erase, One N2841A passive probe 150MHz 10:1 attenuation per channel, N2756A 16 digital channel MSO cable, Interface and built-in help language support (English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Italian, Thai, and Polish), Localized power cord.
