S97553B/R-A5C-001-A/R-A6C-001-L-AU

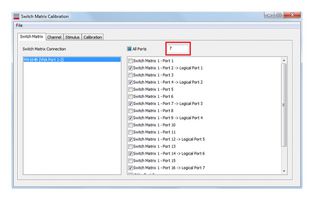

S97553B/R-A5C-001-A/R-A6C-001-L-AU is a S97553B multiport calibrated measurements with switch instruments and R-A5C-001-A node-locked (fixed) -perpetual license with a R-A6C-001-L 12-months, support subscription. This application provides a macro which enables full multiport error correction and measurement capabilities using external switch instruments. This application provides a macro which enables full multiport error correction and measurement capabilities using external switch instruments such as the M9164A/B or M9165A/B PXI solid-state switch matrix. The software includes an easy-to-use measurement wizard that simplifies measurement procedures and reduces the setup time of complicated multiport measurements. The VNA displays measured multiport S-parameters.

• Provides multiport calibrated measurements using external switch matrix module
• P9164A/65A USB 6.5GHz 2x8 switch and P9164B/65B USB 9GHz 2x16 switches supported
• Controls the calibrations and measurements for VNA and switch matrix
• Measurement data is converted and transferred to a VNA viewer (acting as a multi-port VNA)
