L-7113SRC-J4
LED, Low Power, Red, Water Clear Lens, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 640 nm

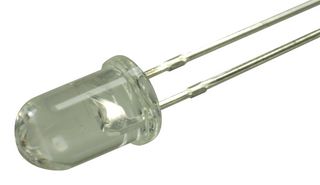

Image is for illustrative purposes only. Please refer to product description.
6,226 total stock globally
Need more?
6226 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 5+ | $0.866 ($0.9959) |
| 10+ | $0.657 ($0.7556) |
| 25+ | $0.549 ($0.6314) |
| 50+ | $0.497 ($0.5716) |
| 100+ | $0.456 ($0.5244) |
| 150+ | $0.427 ($0.491) |
| 200+ | $0.419 ($0.4818) |
| 250+ | $0.410 ($0.4715) |
Price for:Each
Minimum: 5
Multiple: 5
$4.33 ($4.98 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKINGBRIGHT
Manufacturer Part NoL-7113SRC-J4
Order Code2314283
Technical Datasheet
LED ColourRed
LED MountingThrough Hole
LED Case SizeT-1 3/4 (5mm)
Forward Current If20mA
Forward Voltage2.1V
Wavelength Typ640nm
Luminous Intensity8cd
Viewing Angle20°
Lens ShapeDome
Product Range-
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The L-7113SRC-J4 is a 5mm super bright red Solid State LED Lamp with water clear lens. The super bright red source colour device is made with AlGaInP on Si substrate light emitting diode.
- General purpose leads
- Low power consumption
- Reliable and rugged
- Solid state reliability and long life
- Lens Type Water Clear
Applications
LED Lighting, Industrial
Technical Specifications
LED Colour
Red
LED Case Size
T-1 3/4 (5mm)
Forward Voltage
2.1V
Luminous Intensity
8cd
Lens Shape
Dome
Automotive Qualification Standard
-
SVHC
No SVHC (27-Jun-2024)
LED Mounting
Through Hole
Forward Current If
20mA
Wavelength Typ
640nm
Viewing Angle
20°
Product Range
-
MSL
-
Technical Docs (2)
Alternatives for L-7113SRC-J4
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85414100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000499
