KEEG1538WB-100LB

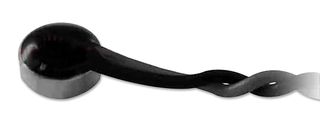

Microphone, Electret Condenser, Omnidirectional, 20 Hz to 20 kHz, 2 VDC to 10 VDC, -42 dB
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | KINGSTATE |
|---|---|
| Manufacturer Part No | KEEG1538WB-100LBCopy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 2215103 |
| Your Part Number | |
| Technical Datasheet |
2,564 total stock globally
1,000 more incoming. You can reserve stock now
2,564 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.550 ($4.0825) |
| 5+ | $3.180 ($3.657) |
| 10+ | $2.950 ($3.3925) |
| 20+ | $2.700 ($3.105) |
| 40+ | $2.600 ($2.990) |
| 100+ | $2.490 ($2.8635) |
Price for:Each
Minimum: 1
Multiple: 1
$3.55 ($4.08 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | KINGSTATE |
|---|---|
| Manufacturer Part No | KEEG1538WB-100LBCopy |
| Manufacturer Standard Lead Time | 24 weeks |
| Order Code | 2215103 |
| Technical Datasheet | |
| Transducer Function | Microphone |
| Directivity | Omnidirectional |
| Frequency Response Min | 20Hz |
| Frequency Response Max | 20kHz |
| Supply Voltage Min | 2VDC |
| Supply Voltage Max | 10VDC |
| Drain Current Max | 500µA |
| Sensitivity (dB) | -42dB |
| Output Impedance | 2.2kohm |
| Impedance | 2.2kohm |
| Product Range | - |
Product Overview
The KEEG1538WB-100LB is an omnidirectional Electret Condenser Microphone.
- 58dB Signal to Noise Ratio
- -3dB Sensitivity Reduction
- Wire Type Terminal
- IP67 Dustproof and Waterproof Protection
Applications
Audio
Technical Specifications
| Transducer Function | Microphone |
|---|---|
| Frequency Response Min | 20Hz |
| Supply Voltage Min | 2VDC |
| Drain Current Max | 500µA |
| Output Impedance | 2.2kohm |
| Product Range | - |
| Directivity | Omnidirectional |
|---|---|
| Frequency Response Max | 20kHz |
| Supply Voltage Max | 10VDC |
| Sensitivity (dB) | -42dB |
| Impedance | 2.2kohm |
Technical Docs (1)
Alternatives for KEEG1538WB-100LB
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85181000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001512 |
