KPEG163
Transducer, Piezo, 80 dB, Wire Leads, 0.014 µF

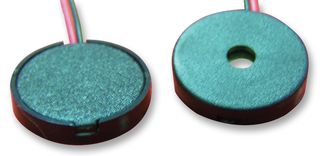

Image is for illustrative purposes only. Please refer to product description.
585 total stock globally
Need more?
585 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 5+ | $1.300 ($1.495) |
| 50+ | $1.020 ($1.173) |
| 250+ | $0.914 ($1.0511) |
| 500+ | $0.851 ($0.9786) |
| 1000+ | $0.811 ($0.9326) |
| 2000+ | $0.771 ($0.8866) |
| 10000+ | $0.732 ($0.8418) |
Price for:Each
Minimum: 5
Multiple: 5
$6.50 ($7.48 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKPEG163
Order Code1502698
Technical Datasheet
Transducer FunctionBuzzer
Tones-
Sound Pressure Level (SPL)80dB
Supply Voltage Max30V
Resonant Frequency-
Operating Current Max10mA
Transducer MountingWire Leads
Drive Circuit-
Capacitance0.014µF
Sound Level Distance10cm
Lead Wire32AWG
IP Rating-
Housing MaterialABS (Acrylonitrile Butadiene Styrene)
Operating Voltage Range30V p-p
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product Range-
SVHCLead titanium zirconium oxide (23-Jan-2024)
Product Overview
The KPEG163 is an Audio Transducer with 80dB sound level SPL.
Applications
Sensing & Instrumentation, Audio
Technical Specifications
Transducer Function
Buzzer
Sound Pressure Level (SPL)
80dB
Resonant Frequency
-
Transducer Mounting
Wire Leads
Capacitance
0.014µF
Lead Wire
32AWG
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-30°C
Product Range
-
Tones
-
Supply Voltage Max
30V
Operating Current Max
10mA
Drive Circuit
-
Sound Level Distance
10cm
IP Rating
-
Operating Voltage Range
30V p-p
Operating Temperature Max
85°C
SVHC
Lead titanium zirconium oxide (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85318040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000756
