35H-210-000-OR-900
Battery Disconnector Switch, Manual, Removable, Orange, Lever, 1 Poles, 250 A, 80 VDC, Flange

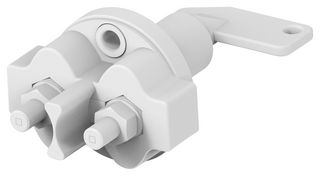

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - KISSLING |
|---|---|
| Manufacturer Part No | 35H-210-000-OR-900Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 4378358 |
| Product Range | 35H Series |
| Your Part Number | |
| Technical Datasheet |
12 total stock globally
Need more?
12 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $194.310 ($223.4565) |
| 5+ | $171.810 ($197.5815) |
| 10+ | $164.900 ($189.635) |
Price for:Each
Minimum: 1
Multiple: 1
$194.31 ($223.46 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - KISSLING |
|---|---|
| Manufacturer Part No | 35H-210-000-OR-900Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 4378358 |
| Product Range | 35H Series |
| Technical Datasheet | |
| Disconnect Switch Type | Manual |
| Operating Voltage | 80VDC |
| Contact Current Rating | 250A |
| No. of Poles | 1Poles |
| Switch Mounting | Flange Mount |
| Operating Handle Type | Lever |
| Termination Thread Size | M8 |
| Switch Keying | Removable |
| IP Rating | IP67, IP6K9K |
| Product Range | 35H Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview
35H-210-000-OR-900 is a 250A battery disconnect switch.
- 80VDC operating voltage
- 250A switch main contact current rating
- Orange operating handle colour
- M8 termination thread size
- Lever operating handle type
- Screw hole diameter is 7mm
- Centerline between flange screw holes is 38mm
- Operating temperature range from -40 to 85°C
Technical Specifications
| Disconnect Switch Type | Manual |
|---|---|
| Contact Current Rating | 250A |
| Switch Mounting | Flange Mount |
| Termination Thread Size | M8 |
| IP Rating | IP67, IP6K9K |
| SVHC | Lead (04-Feb-2026) |
| Operating Voltage | 80VDC |
|---|---|
| No. of Poles | 1Poles |
| Operating Handle Type | Lever |
| Switch Keying | Removable |
| Product Range | 35H Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Slovak Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .16 |
