KNIPEX 92 58 74 ESD

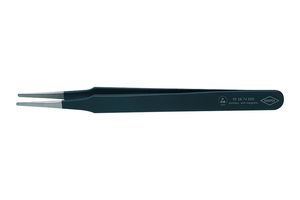

Tweezer, Anti-Magnetic, ESD, Precision, Straight, Round, Stainless Steel Tip, 120 mm Length

KNIPEX 92 58 74 ESD
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KNIPEX KNIPEX
Manufacturer Part No:
92 58 74 ESD
Order Code:
3116461
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
92 58 74 ESD   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
120mm

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

92 58 74 ESD is a stainless steel gripping tweezer. It features electrically dissipative coating: a universal tweezer in the ESD version equalizes differences in electrical potential between their user and the workpieces in a controlled manner. ESD-tested, black epoxy resin coating with a surface resistance between 10^3 and 10^9 ohms. It has a wide range of designs: straight, angled, gripping surfaces and handles smooth or serrated, with needle points, and narrow or blunt tips. The high-quality stainless steel ensures extreme toughness and very good corrosion resistance against a variety of atmospheric environments and many corrosive materials. Its straight tips provide excellent precision and control when picking up and handling small objects. ESD handle versions discharge electrostatic energy through the handles in a gradual and controlled manner (Dissipative 104/109 OHM regarding DIN EN 61340-5-1).
  • For the electronics and precision engineering industries
  • Antimagnetic to avoid electromagnetic damage
  • Blunt tips offer a firm grip but won't damage surrounding components
  • Smooth gripping surface will not mar fine components
  • Smooth handles minimizes any potential interference with surrounding materials
  • 80% anti-magnetic design minimizes magnetic interference
  • Dimension is 118 x 10 x 12mm
  • DIN EN 61340 -5-1 standard, non-magnetizable (80%)
  • 0.30mm tip thickness, 2.00mm tip width

Warnings

Do no use on live circuits. Always switch off power. Always wear approved eye protection.

6 total stock globally Need more?

6 UK stock available for 5-8 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$41.25 ( $47.44  Inc. GST)
