CSMN37MF-5

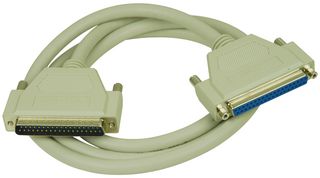

Computer Cable, D Subminiature Plug, 37 Way, D Subminiature Socket, 37 Way, 5 ft, 1.52 m, Grey

| Manufacturer | L-COM |
|---|---|
| Manufacturer Part No | CSMN37MF-5Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2668347 |
| Product Range | CSMN37MF Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $260.760 ($299.874) |
| 5+ | $241.480 ($277.702) |
| 10+ | $234.410 ($269.5715) |
Product Information
| Manufacturer | L-COM |
|---|---|
| Manufacturer Part No | CSMN37MF-5Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2668347 |
| Product Range | CSMN37MF Series |
| Technical Datasheet | |
| Connector Type A | D Subminiature Plug, 37 Way |
| Connector Type B | D Subminiature Socket, 37 Way |
| Jacket Colour | Grey |
| Product Range | CSMN37MF Series |
Product Overview
The CSMN37MF-5 is a deluxe molded D-sub Cable Assembly with DB37 male to female connection. This deluxe molded gray cable assembly offers solid performance at economical prices. It is fully shielded throughout the entire cable to prevent against data corrupting EMI/RFI. Molded backshells provide superior strain relief while robust 26AWG conductors are wired straight through for ease of compatibility. Metal thumbscrews insure fast and easy connections. Custom lengths and pinouts are available with modest minimum requirements. It is applicable to RS-449 serial communications.
- Wired straight through for extending serial devices/peripherals
- 360° degree fully shielded for protection against EMI/RFI
- Gold plated contacts to provide reliable connections with repeated mating cycles
- Hex nuts on female connectors are removable to expose 4-40 thumb screws
Applications
Communications & Networking, Sensing & Instrumentation, Industrial
Technical Specifications
| Connector Type A | D Subminiature Plug, 37 Way |
|---|---|
| Jacket Colour | Grey |
| Connector Type B | D Subminiature Socket, 37 Way |
|---|---|
| Product Range | CSMN37MF Series |
Technical Docs (1)
Alternatives for CSMN37MF-5
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444290 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .365142 |
