WK-359-ANSI X 200M
Thermocouple Wire, ANSI, PVC Insulated, Mylar Screened, Type K, 7 x 0.2mm, 200 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoWK-359-ANSI X 200M
Order Code2443702
Also Known AsWK-359-ANSI
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,213.830 ($1,395.9045) |
| 5+ | $1,206.400 ($1,387.360) |
| 10+ | $1,198.960 ($1,378.804) |
| 25+ | $1,092.850 ($1,256.7775) |
| 50+ | $986.740 ($1,134.751) |
| 100+ | $967.010 ($1,112.0615) |
Price for:Reel of 1
Minimum: 1
Multiple: 1
$1,213.83 ($1,395.90 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoWK-359-ANSI X 200M
Order Code2443702
Also Known AsWK-359-ANSI
Technical Datasheet
Thermocouple Wire TypeK
Length - Imperial656.2ft
Length - Metric200m
No. of Max Strands x Strand Size7 x 0.2mm
Wire Gauge-
Conductor Area CSA0.219mm²
Conductor TypeStranded
Colour Code StandardANSI
InsulationPVC (Polyvinylchloride)
Operating Temperature Min-10°C
Operating Temperature Max105°C
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview

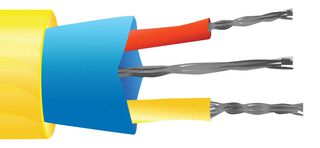

The WK-359-ANSI X 200M is a 200m yellow Thermocouple Cable for use with K-type thermocouple. Conductors PVC insulated and twisted together, aluminium Mylar® tape screen and drain wire, overall PVC sheath.
- Twisted cores and screened construction for reduced electrical noise
- General purpose cable both waterproof and flexible
- Stranded 7/0.2mm conductors
- Tolerance class 2
- -10 to 105°C Insulation rating
Applications
Sensing & Instrumentation
Technical Specifications
Thermocouple Wire Type
K
Length - Metric
200m
Wire Gauge
-
Conductor Type
Stranded
Insulation
PVC (Polyvinylchloride)
Operating Temperature Max
105°C
SVHC
No SVHC (25-Jun-2025)
Length - Imperial
656.2ft
No. of Max Strands x Strand Size
7 x 0.2mm
Conductor Area CSA
0.219mm²
Colour Code Standard
ANSI
Operating Temperature Min
-10°C
Product Range
-
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90259000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):7
