WK-602-D
Thermocouple Wire, IEC, PFA Insulated, Flat Pair, Type K, 7 x 0.2mm, 25 m

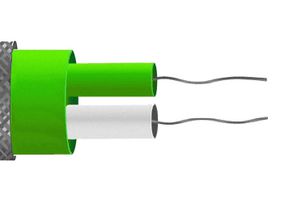

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoWK-602-DCopy
Manufacturer Standard Lead Time20 weeks
Order Code4073506
Also Known AsXF-1969-FAR
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $264.060 ($303.669) |
| 5+ | $253.700 ($291.755) |
| 10+ | $244.120 ($280.738) |
| 25+ | $239.240 ($275.126) |
| 50+ | $234.360 ($269.514) |
| 100+ | $229.480 ($263.902) |
Price for:Each
Minimum: 1
Multiple: 1
$264.06 ($303.67 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoWK-602-DCopy
Manufacturer Standard Lead Time20 weeks
Order Code4073506
Also Known AsXF-1969-FAR
Technical Datasheet
Thermocouple Wire TypeK
Length - Imperial82ft
Length - Metric25m
No. of Max Strands x Strand Size7 x 0.2mm
Wire Gauge-
Conductor Area CSA0.219mm²
Conductor TypeStranded
Colour Code StandardIEC
InsulationPFA (Perfluoroalkoxy)
Operating Temperature Min-70°C
Operating Temperature Max250°C
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
WK-602-D is a type K PFA 7/0.2mm class 1 insulated flat pair with stainless steel overbraid thermocouple cable / wire (IEC). PFA PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam and pressure. Stainless steel overbraid for added protection and mechanical strength.
- PFA PTFE insulated flat pair with stainless steel overbraid
- Thermocouple type K (nickel chromium/nickel aluminium)
- 25m length, 2 cores
- Cores laid flat with overall jacket + stainless steel overbraid
- 7/0.2mm conductors wire size, tolerance class 1
- Minimum temperature is -70°C and maximum temperature is +250°C
- Standards met (colour code) IEC 60584:3, standards met (wire tolerance) IEC 60584:1
- Green overall jacket, white core insulation colour (-neg), green core insulation colour (+pos)
Technical Specifications
Thermocouple Wire Type
K
Length - Metric
25m
Wire Gauge
-
Conductor Type
Stranded
Insulation
PFA (Perfluoroalkoxy)
Operating Temperature Max
250°C
SVHC
No SVHC (04-Feb-2026)
Length - Imperial
82ft
No. of Max Strands x Strand Size
7 x 0.2mm
Conductor Area CSA
0.219mm²
Colour Code Standard
IEC
Operating Temperature Min
-70°C
Product Range
-
Technical Docs (4)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.7
