XF-1098-FAR

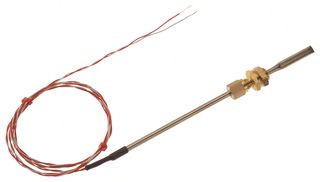

RTD Sensor, Component with Leads, Class B, 100 ohm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoXF-1098-FAR
Order Code2785055
Your Part Number
Technical Datasheet
10 total stock globally
Need more?
10 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $64.520 ($74.198) |
| 5+ | $60.130 ($69.1495) |
| 10+ | $59.140 ($68.011) |
| 25+ | $58.170 ($66.8955) |
| 50+ | $57.010 ($65.5615) |
| 100+ | $55.840 ($64.216) |
| 500+ | $54.680 ($62.882) |
Price for:Each
Minimum: 1
Multiple: 1
$64.52 ($74.20 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoXF-1098-FAR
Order Code2785055
Technical Datasheet
RTD TypeComponent with Leads
Sensing Temperature Min-50°C
RTD AccuracyClass B
Sensing Temperature Max250°C
Resistance100ohm
Measured Temperature Min-
Measured Temperature Max-
Resistance @ 0°C100ohm
RTD Element Material-
Probe Material-
Probe Diameter4mm
Probe Length150mm
Cable Length - Metric1m
Cable Length - Imperial3.28ft
Cable Termination-
Wire TerminationBare Wire
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
XF-1098-FAR is a platinum resistance, general purpose PT100 flat tip probe.
- Flattened at tip for improved thermal response
- 2 wire configuration, class B, to IEC 751
- 316 stainless steel probe, 4.0mm diameter (6mm max. across flat area of tip) x 150mm long overall
- 1-metre-long 7/0.2mm PTFE insulated 2 core twisted lead
- Includes 1/8” BSPP brass male compression fitting with locking nut
- Temperature range from -50°C to + 250°C
- Pt100 (100 ohms at 0°C) to IEC 751, class B sensor type
Technical Specifications
RTD Type
Component with Leads
RTD Accuracy
Class B
Resistance
100ohm
Measured Temperature Max
-
RTD Element Material
-
Probe Diameter
4mm
Cable Length - Metric
1m
Cable Termination
-
Product Range
-
Sensing Temperature Min
-50°C
Sensing Temperature Max
250°C
Measured Temperature Min
-
Resistance @ 0°C
100ohm
Probe Material
-
Probe Length
150mm
Cable Length - Imperial
3.28ft
Wire Termination
Bare Wire
SVHC
No SVHC (25-Jun-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90251900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
