0031320

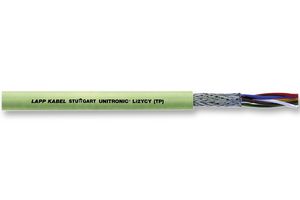

Multipair Cable, Li2YCY (TP), Screened, 2 Pair, 0.22 mm², 164 ft, 50 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLAPP
Manufacturer Part No0031320
Order Code5412572
Product RangeUNITRONIC Li2YCY TP Series
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerLAPP
Manufacturer Part No0031320
Order Code5412572
Product RangeUNITRONIC Li2YCY TP Series
Technical Datasheet
Cable ShieldingScreened
No. of Pairs2 Pair
Wire Gauge-
Jacket ColourGrey
No. of Max Strands x Strand Size7 x 0.2mm
Jacket MaterialPVC
Conductor MaterialCopper
Product RangeUNITRONIC Li2YCY TP Series
Alternatives for 0031320
1 Product Found
Product Overview
The 0031320 is a screened Data Transmission Cable with low capacitance of data system at 10Mbps transmission rate and is qualified for the serial interfaces RS422 and RS485. It can be used as signal, control and measuring cable as well as transmission of low, sensitive signals and high bit rate. The cable is designed for fixed installation in dry and damp interiors and for conditional flexible use. It can be also used for solderless connections.
- CPR: Not Yet Qualified
- Special Polyolefin-based Compound Insulation
- DIN 47100 Core Identification Code
- Braiding with Tinned Copper Wires Screen
- <gt/>5GΩ x km Specific Insulation Resistance
- Approximately 0.65mH/km Inductivity
Applications
Communications & Networking, Test & Measurement, Signal Processing
Technical Specifications
Cable Shielding
Screened
Wire Gauge
-
No. of Max Strands x Strand Size
7 x 0.2mm
Conductor Material
Copper
No. of Pairs
2 Pair
Jacket Colour
Grey
Jacket Material
PVC
Product Range
UNITRONIC Li2YCY TP Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85444995
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.041
