0050005

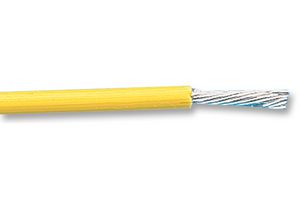

Wire, Stranded, Hook Up, Hi Temp, Silicone, Yellow, 18 AWG, 1 mm², 328 ft, 100 m

0050005 - Wire, Stranded, Hook Up, Hi Temp, Silicone, Yellow, 18 AWG, 1 mm², 328 ft, 100 m

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
0050005
Order Code:
1285952
Product Range
Olflex Heat 180 SiF Series
Technical Datasheet:
0050005   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Silicone

:
Yellow

:
18AWG

:
1mm²

:
328ft

:
100m

:
180°C

:
32 x 0.2mm

:
300V

:
Tinned Copper

:
2.5mm

:
-

:
Olflex Heat 180 SiF Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The 50005 is a 100m ÖLFLEX® HEAT 180 SiF yellow Hook-up Wire with tinned copper fine strands and silicone based insulation. It is suitable for areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while. It features resistant against a multitude of oils, alcohols, vegetable and animal fats and other chemical media.
  • CPR: Not Yet Qualified
  • Flexible fine wire, tinned copper conductor
  • Silicone based insulation
  • Halogen-free in accordance with IEC 60754-1
  • Flame-retardant according IEC 60332-1-2
  • Resistant to oils, alcohols, and chemical substances
  • Nominal voltage is 300V/500V
  • Temperature range from -50°C to 180°C
  • CE approved
  • Packaged in shrink wrapped coil

Applications

Industrial, Power Management, Motor Drive & Control, HVAC, Lighting, Thermal Management
