DPM342
Indicator, DPM342, Current Loop, 4mA to 20mA, 3.5 Digits, 5 Vdc to 6 Vdc

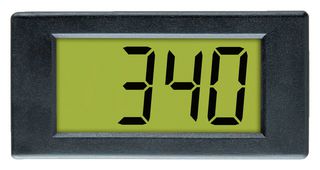

Image is for illustrative purposes only. Please refer to product description.
28 total stock globally
Need more?
28 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $195.520 ($224.848) |
| 5+ | $192.020 ($220.823) |
| 10+ | $188.510 ($216.7865) |
Price for:Each
Minimum: 1
Multiple: 1
$195.52 ($224.85 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLASCAR
Manufacturer Part NoDPM342
Order Code9932763
Technical Datasheet
Panel Cutout Width38mm
Operating Temperature Min0°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
The DPM342 is a 4 to 20mA compact Loop Powered LCD Meter features a 3-1/2-digit LCD with 11mm digit height, LED backlighting and one-piece snap-in housing. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument. The module LED backlighting ensures a clear display, even under low light conditions. Connection to the current loop is via two screw terminals. The correct decimal point is selected via a jumper link.
- Integral snap-in bezel, making installation easy
- No soldering is required
- Low voltage drop
- Simple screw terminal connections
- Wide adjustment range
- 3 Samples/sec rate
Applications
Industrial, Clock & Timing, Test & Measurement, Automation & Process Control
Technical Specifications
Panel Cutout Width
38mm
SVHC
No SVHC (07-Nov-2024)
Operating Temperature Min
0°C
Technical Docs (1)
Alternatives for DPM342
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90303370
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.019051
