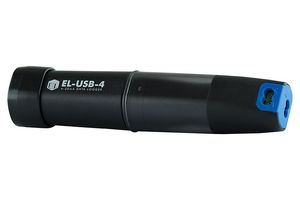

EL-USB-4
Data Logger, 4 to 20mA DC Measurement Range, DC Current, 1 Channel, 32510 Samples, USB
| Manufacturer | LASCAR |
|---|---|
| Manufacturer Part No | EL-USB-4Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1006158 |
| Product Range | EasyLog Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $264.840 ($304.566) |
| 5+ | $259.540 ($298.471) |
Product Information
| Manufacturer | LASCAR |
|---|---|
| Manufacturer Part No | EL-USB-4Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1006158 |
| Product Range | EasyLog Series |
| Technical Datasheet | |
| Data Logger Type | DC Current |
| No. of Channels / Inputs | 1 Channel |
| Sensor / Measurement Type | - |
| Maximum Samples | 32510 Samples |
| Data Interface | USB |
| Display Type | LED Indicator |
| Product Range | EasyLog Series |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
Measures and stores over 32,000 current loop readings over a 4-20mA d.c. measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module into a PC's USB port and running the software (available as a free download from www.easylogusb.com). The data can then be graphed, printed and exported to other applications. Correct functioning of the unit is indicated by a flashing red and green LED.
- 4-20mA DC current loop measurement range
- Stores 32,000 readings
- Supplied software supports Windows 98SE/2000/XP
- USB interface for set-up and data download
- User-programmable alarm thresholds
- Red and green LED status indication
- At least one year's continuous operation from supplied lithium battery
- 3 year battery life
Contents
Data Logger, Set of Measurement Leads Terminating in Crocodile Clips, ½ AA Battery and Wall Mount Clip.
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| Data Logger Type | DC Current |
|---|---|
| Sensor / Measurement Type | - |
| Data Interface | USB |
| Product Range | EasyLog Series |
| No. of Channels / Inputs | 1 Channel |
|---|---|
| Maximum Samples | 32510 Samples |
| Display Type | LED Indicator |
| SVHC | No SVHC (07-Nov-2024) |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Indonesia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90303900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .113398 |
