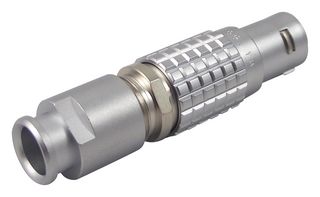

FGG.1B.304.CLAD62Z
Circular Connector, Standard Circular Connector, 1B Series, Cable Mount Plug, 4 Contacts
348 total stock globally
Need more?
348 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $73.750 ($84.8125) |
| 5+ | $68.220 ($78.453) |
| 10+ | $62.680 ($72.082) |
| 25+ | $58.010 ($66.7115) |
| 50+ | $55.960 ($64.354) |
| 100+ | $53.510 ($61.5365) |
Price for:Each
Minimum: 1
Multiple: 1
$73.75 ($84.81 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LEMO |
|---|---|
| Manufacturer Part No | FGG.1B.304.CLAD62ZCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3817313 |
| Product Range | 1B Series |
| Technical Datasheet | |
| Connector Type | Standard Circular Connector |
| Product Range | 1B Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | Push-Pull |
| Connector Body Material | Brass Body |
| Connector Body Plating | Chrome |
| Contact Material | - |
| Contact Plating | - |
| IP Rating | IP50 |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview
The FGG.1B.304.CLAD62Z is a 4-contact standard self-latching Circular Connector with alignment key which allows higher contact density and prevents all errors in alignment and male solder termination. The circular connector is perfectly screened and designed to guarantee very low resistance to shell electrical continuity, particularly adapted to applications where electromagnetic compatibility (EMC) is important.
- Security of push-pull self-latching system
- 360° Screening for full EMC shielding
- Multiple key options to avoid cross mating of similar connectors
- PEEK insulator
- <gt/>5000-cycle Endurance
- 4.8mΩ Maximum resistance
- <gt/>1000h Salt spray corrosion test
- 5.3 to 6.2mm Cable fixing
- IP50 Protection rating
- Nut for fitting a bend relief
- -55 to +250°C Temperature range
Applications
Medical, Communications & Networking, Audio, Imaging, Video & Vision, Industrial, Aerospace, Defence, Military
Technical Specifications
| Connector Type | Standard Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
| Contact Material | - |
| IP Rating | IP50 |
| Product Range | 1B Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | Push-Pull |
| Connector Body Plating | Chrome |
| Contact Plating | - |
| SVHC | No SVHC (14-Jun-2023) |
Alternatives for FGG.1B.304.CLAD62Z
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .016 |
