0298080.ZXEH

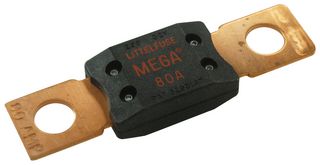

Fuse, Automotive, Bolt Down, Time Delay, 80 A, 32 V, 29.2mm x 19mm x 9.9mm
Image is for illustrative purposes only. Please refer to product description.
552 total stock globally
500 more incoming. You can reserve stock now
552 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $10.440 ($12.006) |
| 5+ | $8.600 ($9.890) |
| 10+ | $7.960 ($9.154) |
| 20+ | $7.660 ($8.809) |
| 50+ | $7.350 ($8.4525) |
Price for:Each
Minimum: 1
Multiple: 1
$10.44 ($12.01 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No0298080.ZXEH
Order Code1354630
Technical Datasheet
Blow CharacteristicTime Delay
Fuse Current80A
Voltage Rating VDC32V
Auto Blade Fuse Size29.2mm x 19mm x 9.9mm
Product Range-
Product Overview
The 0298080.ZXEH is a MEGA®-series 80A, 32V time delay Fuse is designed for high current circuit protection up to 500A with diffusion pill technology and patented, the MEGA fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
- 87mV Voltage drop
- 0.72mΩ Cold resistance
- 2000A at 32VDC Interrupting rating
- Red color
Applications
Automotive
Technical Specifications
Blow Characteristic
Time Delay
Voltage Rating VDC
32V
Product Range
-
Fuse Current
80A
Auto Blade Fuse Size
29.2mm x 19mm x 9.9mm
Technical Docs (3)
Alternatives for 0298080.ZXEH
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85361090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.010954
