153.5395.6171

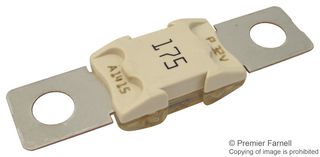

Fuse, Automotive, Slow Blow, 175 A, 32 V, 29mm x 18.8mm x 9.3mm, BF2
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 153.5395.6171Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2508403 |
| Product Range | BF2 |
| Your Part Number | |
| Technical Datasheet |
1 total stock globally
Need more?
1 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $20.940 ($24.081) |
| 2+ | $19.750 ($22.7125) |
| 3+ | $18.570 ($21.3555) |
| 5+ | $17.390 ($19.9985) |
| 10+ | $16.020 ($18.423) |
| 20+ | $15.700 ($18.055) |
Price for:Each
Minimum: 1
Multiple: 1
$20.94 ($24.08 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 153.5395.6171Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2508403 |
| Product Range | BF2 |
| Technical Datasheet | |
| Blow Characteristic | Slow Blow |
| Fuse Current | 175A |
| Voltage Rating VDC | 32V |
| Auto Blade Fuse Size | 29mm x 18.8mm x 9.3mm |
| Product Range | BF2 |
| SVHC | To Be Advised |
Product Overview
153.5395.6171 is a BF2 high current fuse offers a bolt-on fuse for high current wiring protection with transparent housing material for easy detection of blown fuses.
- Voltage rating is 32VDC
- Interrupting ratings are 100A - 300A, 2000A and 400A - 500A, 1500A at 32VDC
- Recommended environmental temperature is -40˚ to 125˚C
- Tin plated copper alloy terminal, PET-GF33 (U.L. 94 flammability rating – V0) housing
- Mounting torque is 12Nm +/- 1Nm
Applications
Safety, Industrial, Automotive
Technical Specifications
| Blow Characteristic | Slow Blow |
|---|---|
| Voltage Rating VDC | 32V |
| Product Range | BF2 |
| Fuse Current | 175A |
|---|---|
| Auto Blade Fuse Size | 29mm x 18.8mm x 9.3mm |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85361090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009026 |
