IXYK110N120B4
IGBT, 340 A, 1.66 V, 1.36 kW, 1.2 kV, TO-264, 3 Pins

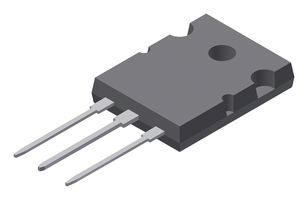

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoIXYK110N120B4
Order Code4167476
Product RangeXPT Gen 4 Series
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $42.870 ($49.3005) |
| 5+ | $40.140 ($46.161) |
| 10+ | $37.410 ($43.0215) |
| 50+ | $34.660 ($39.859) |
| 100+ | $31.930 ($36.7195) |
| 250+ | $29.190 ($33.5685) |
Price for:Each
Minimum: 1
Multiple: 1
$42.87 ($49.30 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoIXYK110N120B4
Order Code4167476
Product RangeXPT Gen 4 Series
Technical Datasheet
Continuous Collector Current340A
Collector Emitter Saturation Voltage1.66V
Power Dissipation1.36kW
Collector Emitter Voltage Max1.2kV
Transistor Case StyleTO-264
No. of Pins3Pins
Operating Temperature Max175°C
Transistor MountingThrough Hole
Product RangeXPT Gen 4 Series
Technical Specifications
Continuous Collector Current
340A
Power Dissipation
1.36kW
Transistor Case Style
TO-264
Operating Temperature Max
175°C
Product Range
XPT Gen 4 Series
Collector Emitter Saturation Voltage
1.66V
Collector Emitter Voltage Max
1.2kV
No. of Pins
3Pins
Transistor Mounting
Through Hole
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
Tariff No:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.013559
